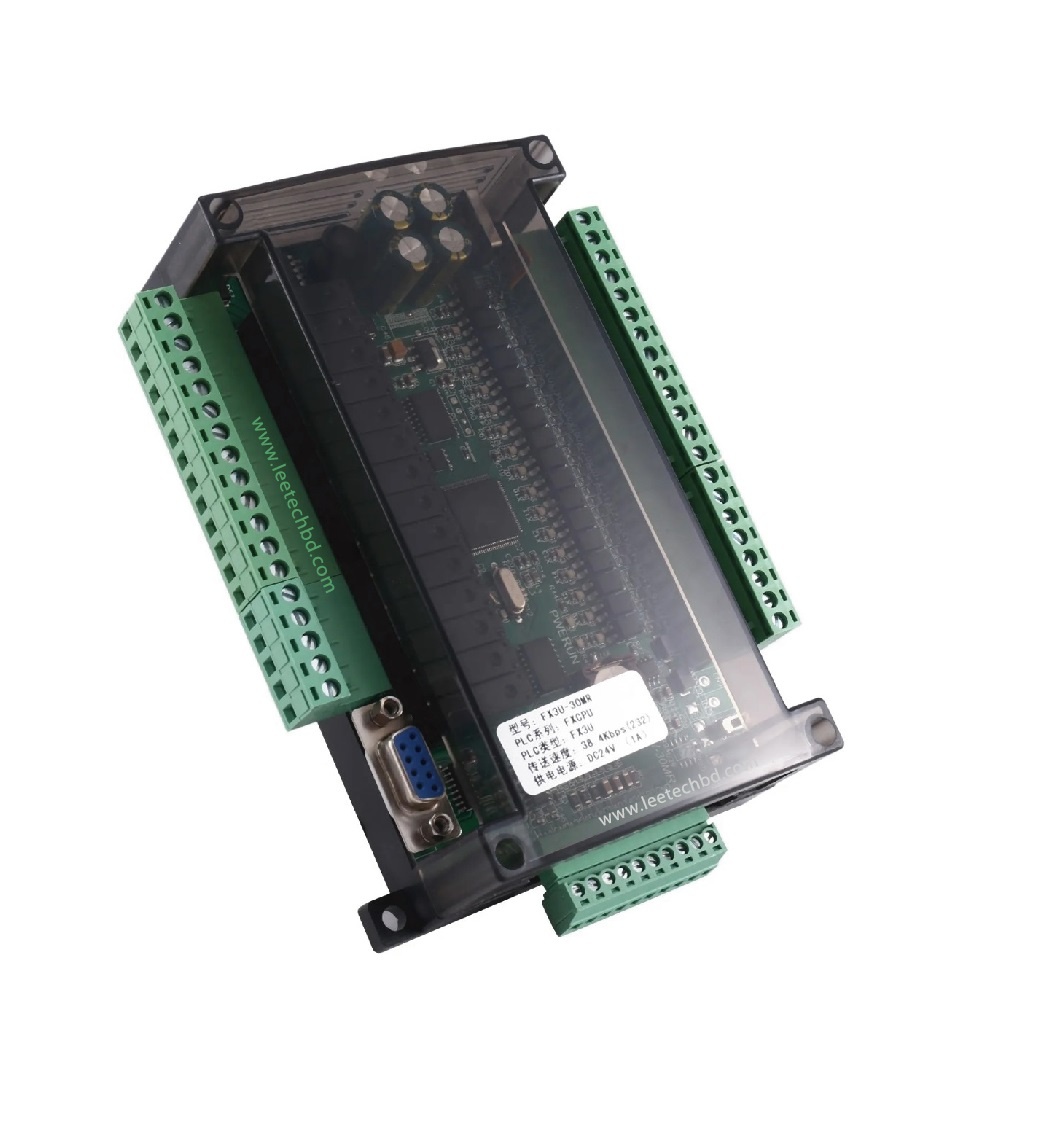

FX3U-30MR PLC Industrial Controller

DescriptionFX3U-30MR-6AD2DA programmable logic controller for industrial projects, has 16 digital inputs, 14 digital outputs (Relay), 6 analog input channels and 2 analog output channels, the plc has a DIN rail housing, ideal for automating all types of machines and processes, is compatible with GX-developer, GX-work2, supports HMI connection.Characteristics: Model: FX3U-30MRInput voltage: DC24VProgram steps: 8000 steps: 1 communication port: one RS232 (DB9 serial communication port is FX3u, (communication protocol can be set D8120)Component X input point: (14 IN) X0-X15, DC24 input, low level effectively. X0-5 high speed input port (default is 12kHz).Output point AND component: (10 OUT) Y0-Y11 is relay output. Relay output current 5A, Y0-2 for high speed output (max. 26k)Analog input: 6 channels of analog input, 12-bit precision, input voltage: 0-10V, read analog with RD3A commandAnalog output: 2 channels analog output, 12-bit precision, output voltage: 0-10V, analog voltage output with WR3A command100ms timer: T0-T199, cumulative power-saving-off T184-T19910ms timer: T20-T249, cumulative power-saving-off T246-T2491 ms timer: T250-T383, T250-255 accumulate type16-bit counter: C0-C199, power off save C100-19932-bit counter: C200-C219, power off save C220-C23432-bit high-speed counter: C235-255; C235-240 is Single-phase counter, frequency multiplication; C241-240 is Single-phase counter, 2 frequency multiplication; C247-249 is Double-phase counter, without frequency multiplication; C250-252 is Double-phase counter, 2 Frequency multiplication; 4 Frequency multiplication.Register D: D0-D7999, power-off save range can be set D0-7999Indirect pointer addressing: VO-7, Z0-7P subroutine jump: P0-63I interrupt: Timer interrupt (1 ms is unit). Interrupt counter.Special M component: M8000 is normally closed during operation, M8002 is power-on pulse, M8011 is 10ms pulse, M8012 is 100ms pulse, M8013 is 1S pulse, M8014 is minute pulse. VISIT OUR FACEBOOK PAGE FOR MORE INFO | MORE PRODUCT IN OUR SHOP Quick EntriesDatasheet Software
