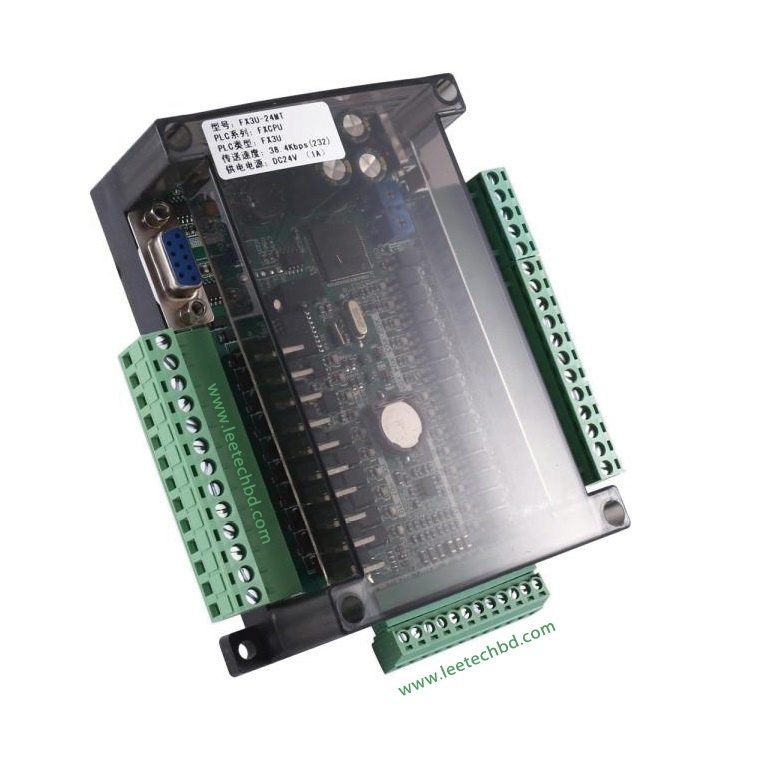

FX3U-24MT PLC industrial Control Module

DescriptionPLC industrial Control Module FX3U-24MTThe PLC industrial Control Module FX3U-24MT is a high-performance device designed for industrial automation applications. With 24 input/output points, it offers reliable and efficient control of various processes. Its compact design and user-friendly interface make it easy to install and operate. Ideal for use in manufacturing, packaging, and other industrial settings.ModelFX3U-24MTOutput typeTransistorInput Voltage24V DCOutput Current1AInput Point14Output Point10Analog Input6ADAnalog Output2DAHigh-speed counting6 channel 3K(2 channel 60K are optional)Pulse output4 channel 12K (4 channel 100K are optional)Floating pointSupportStep motorSupportMemory capacity8000 stepsDown load typeDown load directlyRS485OptionalMODBUSOptionalSupport text displayYESSupport HMI Touch ScreenYESSoftwareGX Developer OR GX Works2VISIT OUR FACEBOOK PAGE FOR MORE INFO | MORE PRODUCT IN OUR SHOP Hardware: FX3U 24MT * Dimensions WxHxD: 140x125x45mm * 14 inputs, 10 Transistor outputs (Y0 and Y1 are 2 pins for 100KHz pulse output). Input only accepts NPN signal * 2 analog outputs (0-10 V: DAD-DA1) * Uses 24VDC power supply * 2 Connection ports: 1 Rs232 (DB9 protocol port 38400, 7, E, 1) and 1 RS485 can be set up via D8120. * X0-X15 high-speed input with default speed of 12K, can be set to 100KHz) * Y0-Y11 relay output, rated current 5A * 6 analog inputs (3 0-10V inputs: AD0-AD2 and 3 0-20mA inputs; AD3-ADE) * Read input AD value with RD3A command structure. Write output DA value with WR3A command structure.* 100ms pulse timer TO-T199 in which T184-T199 have latch. * 10ms pulse timer T200-T249 in which T246-T249 have latch. * 1ms pulse timer T250-1383 in which 1350-7383 have latch * 16Bit counter: C0-C199 in which C100-C199 have latch. * 32Bit counter: C200-C219 in which C220-C234 have latch. * High speed counter C235-C255. * MB011 pulse 10ms; M8012 pulse 100ms; M8013 pulse 1ms; MB014 pulse 1 minute. * Support RS485 communication, Modbus RTU Software: FX3U24MT * PLC connection speed <=> PC 38400kps. * Support connecting HMI of many brands: Siemens, Mitsubishi, Weinview, Kinco, Xinje, Delta, Coolmay. * Support using GX-Developer, GxWork2 software
