DAP Frigga Active Column PA System (Package)

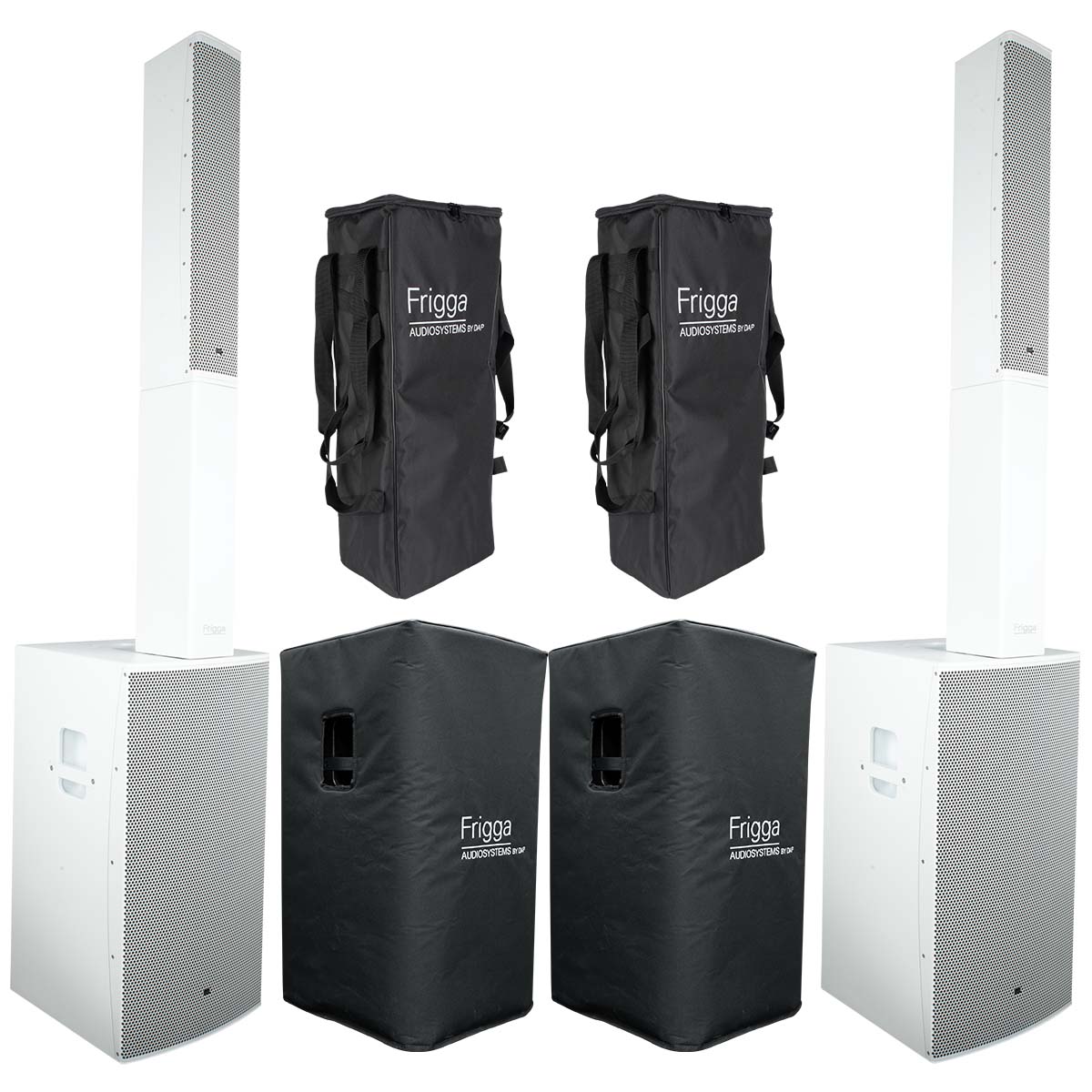

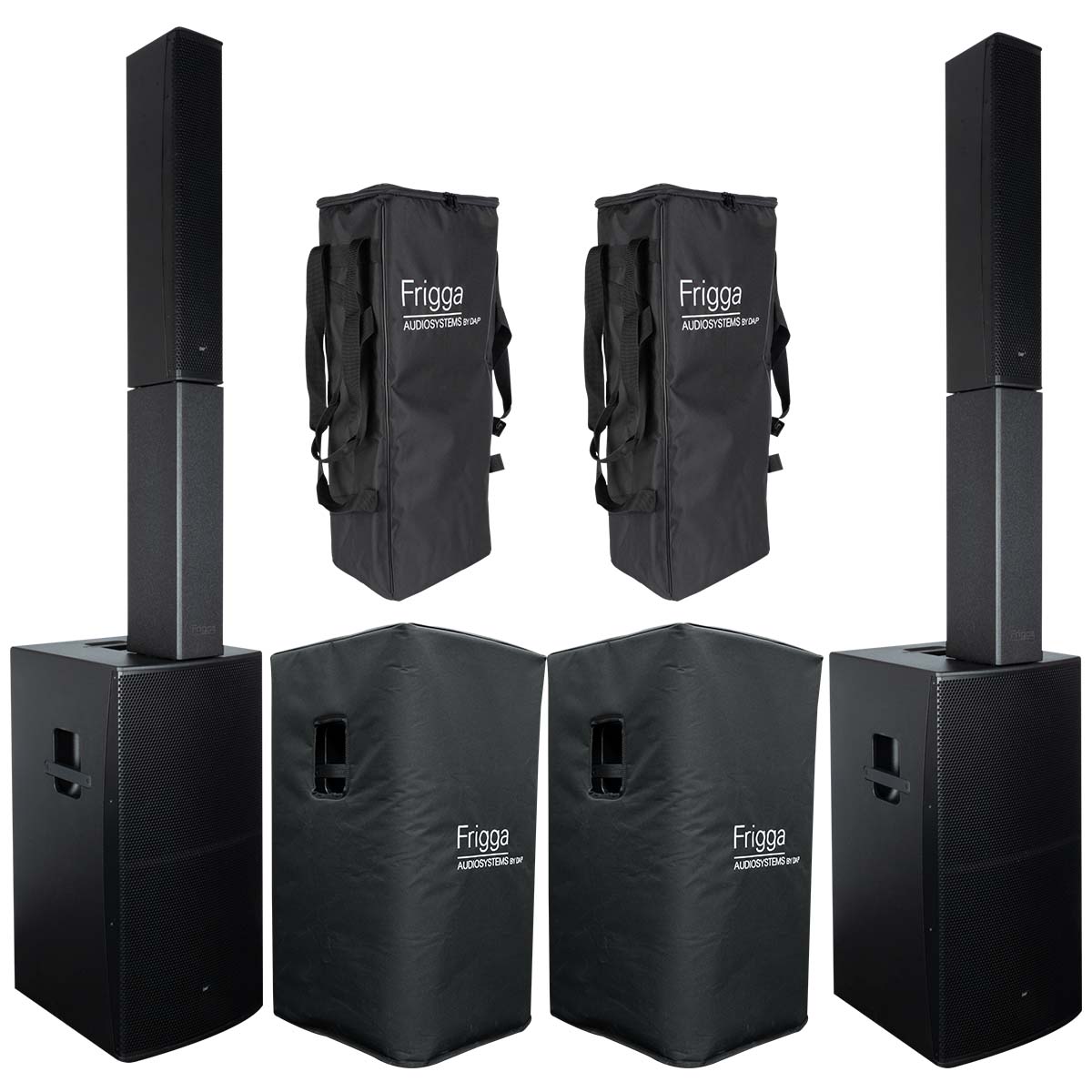

Product DetailsProduct SpecificationsVideoProduct Details Overview DAP Frigga Active Column PA System (Package) The DAP Frigga Active Column PA System (Package) contains: 2 x DAP Frigga Active Column PA Systems 2 x DAP Carrying Bag For Frigga Top 2 x DAP Transport Cover For Frigga Sub The DAP Frigga Active Column PA System (Package) is an active PA speaker system with one subwoofer and one column speaker, suitable for singer-songwriters, corporate presenters, mobile DJs, nightlife venues, and bands. It offers three inputs: XLR microphone input with gain and clip indicator, XLR line input with passthrough, and Bluetooth with TWS support. The mixed output combines all signals. The SUB level control and Master level adjust the balance and volume. Status LEDs indicate the amplifier status. The Frigga features an active dual 12″ subwoofer with a built-in amplifier for the column speaker. The column speaker includes six 4″ neodymium midrange drivers and a 1.5″ neodymium compression driver. The built-in amplifier delivers 1000 W RMS (2000 W peak) across three channels. Two mounting poles adjust the height for various setups. The Frigga comes with cables, mounting poles, and spacers and is available in black or white. Please note that microphone and line signals are not transmitted via Bluetooth when using TWS. Features 1000 W RMS, max SPL of 134 dB at 1m (column) 40 – 20,000 Hz frequency range Bi-amp Microphone, line and Bluetooth 5.0 inputs with TWS Cables, mounting poles and spacer included Product Specifications Product Specifications Outputs Power Amplifier RMS Output: 1000 W Power Amplifier Peak Output: 2000 W Top Cabinet High Driver Power: 250 W Top Cabinet Low Driver Power: 250 W Subwoofer Power: 500 W Passive Output Connector: Speaker Connector 4 pole Main Outputs: 1 Main Output Connector: 3-pin XLR Inputs Mono Inputs: 2 Mono Input Connector: 3-pin XLR Audio Specifications THD Level: < 0.3 % Signal-to-noise Ratio: > 105 dB AD/DA Convertor Sample Rate: 48 kHz Amp Technology: Class D /Class H Speaker System: Active Subwoofer/ Active Bi-amp 2-way Speaker Sensitivity (1 W/1 m): 96 dB Max. SPL Subwoofer at 1 m: 132 dB Max. SPL Top Cabinet at 1 m: 134 dB DSP Processor Bitrate: 24-bit Frequency Response Minimum: 40 Hz Frequency Response Maximum: 20000 Hz Woofer Diameter: 12 “ Woofer Voice Coil Diameter: 2.5 “ Woofer Magnet Type: Ferrite Satellite Woofer Diameter: 4 “ Satellite Woofer Voice Coil Diameter: 1 “ Satellite Woofer Magnet Type: Neodymium Compression Driver Diameter: 1 “ Compression Driver Voice Coil: 1.8 “ Compression Driver Magnet Type: Ferrite Subwoofer Dispersion Angle (Horizontal): 360 ° Subwoofer Dispersion Angle (Vertical): 180 ° Satellite Dispersion Angle (Horizontal): 110 ° Satellite Dispersion Angle (Vertical): 30 ° Electrical Specifications and Connections Power Supply: 100-240 V AC 50/60 Hz Power Consumption: 1100 W Power Connector In: Power Pro Blue Power Connector Out: Power Pro Grey Mechanical Specifications: Top Cabinet Height: 765 mm Top Cabinet Width: 135 mm Top Cabinet Depth: 200 mm Subwoofer Height: 865 mm Subwoofer Width: 430 mm Subwoofer Depth: 485 mm Material: Plywood Top Cabinet Weight: 8 kg Subwoofer Weight: 25 kg IP Rating: IP20 (indoor use only) Colour: Black Thermal Specifications Maximum Ambient Temperature: 40 °C Minimum Ambient Temperature: -20 °C Included Items Included Cables: Power Pro Cable, Speaker cable Video
